SKU : BHMW3X3XL-CT

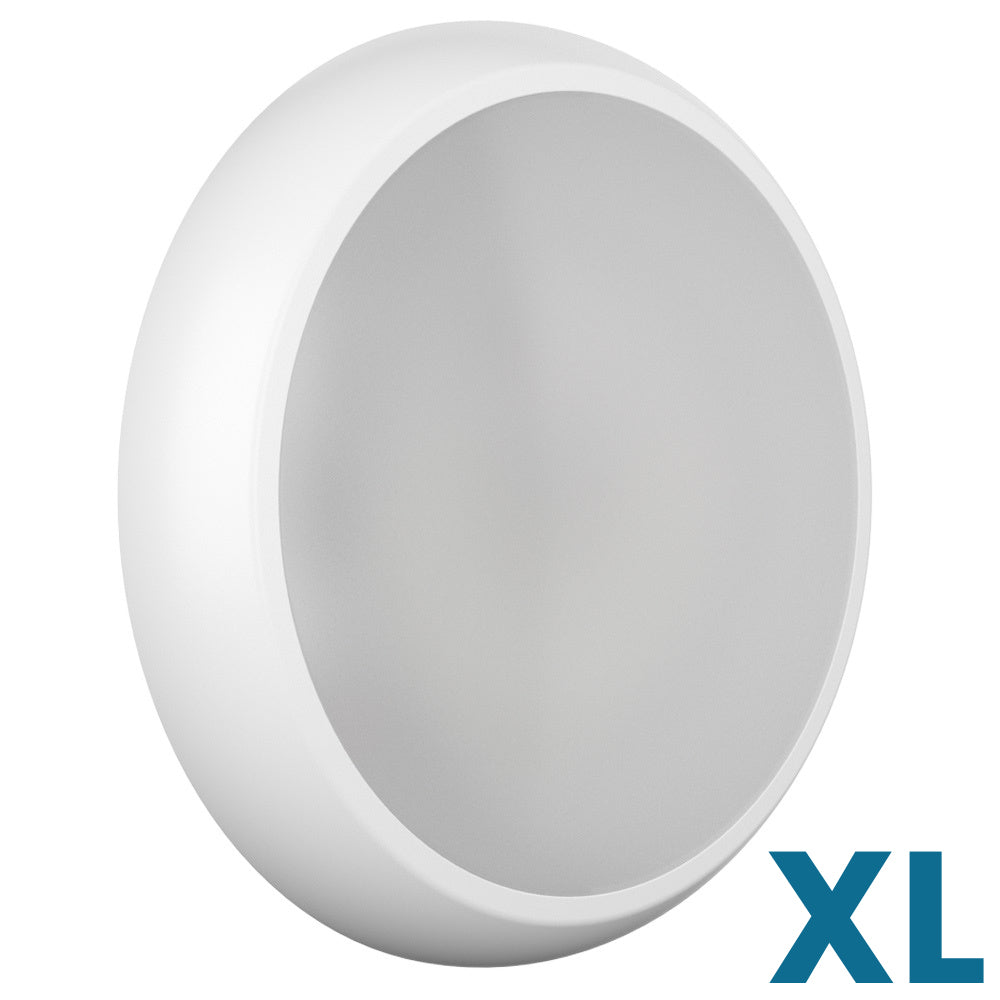

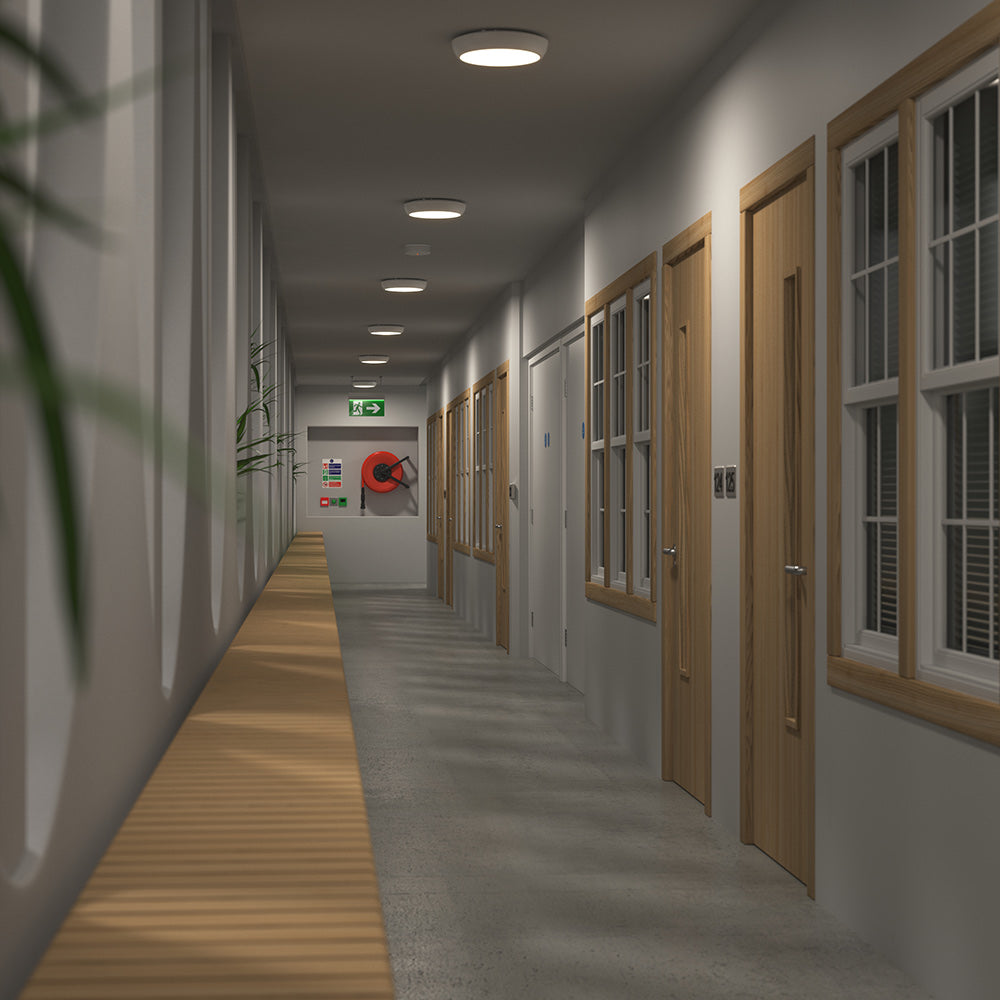

The ACTON XL Large Microwave Motion SensorTri-Colour & Multi Wattage LED bulkhead is an ultimate all in one surface light fitting. Ideal for communal hallways, stairs, corridors, bathrooms, HMO or other indoor spaces, whether ceiling or wall mounted.

  • Large bulkhead fitting 400mm diameter
  • Tri-Colour CCT selectable - 3000K, 4000K, 6000K
  • Multi-Wattage selectable - 20W, 24W or 28W
  • Perfect for high traffic commercial areas
  • Adjustable time delay, daylight lux and sensor range

Read More

ACTON XL Large 400mm Slim Bulkhead Light | LED Multi Wattage 2800lm | Tri-Colour CCT | IP65 | Microwave Sensor

50+ In stock Pre-order Now Order now, Only 5 left! Sold Out

Regular price £74.95 £69.95


/
inc VAT

SAFE & SECURE SHOPPING

American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa
ACTON XL Large 400mm Slim Bulkhead Light | LED Multi Wattage 2800lm | Tri-Colour CCT | IP65 | Microwave Sensor

SPECIFICATION

The ACTON XL Microwave Sensor LED is Large 400mm bulkhead allows you to choose which wattage and colour temperature you want from a switch inside the light fitting.  Offering you an option of 20W, 24W or 28W and 3000K, 4000K or 6000K.


Average Life 50,000 hrs
Bathroom Zones Zone 1 & 2
Beam Angle 120°
Bezel Colour White
Body Colour White
Body Material Polycarbonate
Box Contents Fitting, Fixings & Instructions
Brand LightHub

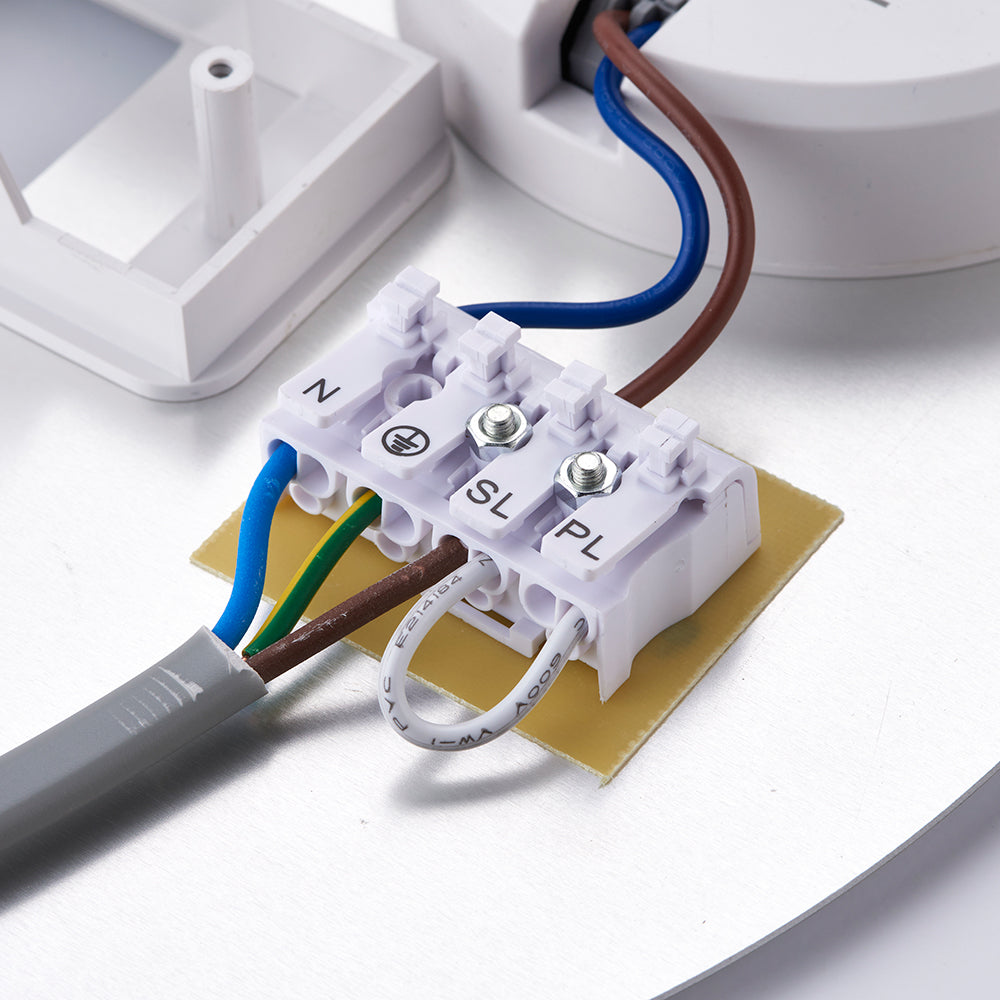

Cable Entry Rear 20mm Cable Entry
Cap Type Integrated LED
Colour Rendering Index (CRI) >=80
Colour Temperature Description CCT Tri-Colour Switchable
Colour Temperature Value 3000K, 4000K & 6000K
Conduit Knockouts None
Dimmable Non-Dimmable
Domestic/Commercial Use Commercial, Semi-Commercial & Domestic
Earth Protection Class II
Emergency (Yes/No) No
Fire Rated (Yes/No) No
Fitting Installation Ceiling or Wall
Fixings Supplied Yes
IK Rating (Impact Protection) IK08
Indoor/Outdoor Usage Indoor or Outdoor
Installation Options Bathrooms & Toilets / Basement / Corridors / Garages / Hotels & B&Bs / Offices / Outdoor Walls / Public Rooms / Receptions / Retail / Restaurants / Shops / Stairwells / Walkways
IP Rating IP65
kWh Per 1000hr Life 20, 24 or 28W
Diffuser Colour Frosted
Diffuser Material Polycarbonate

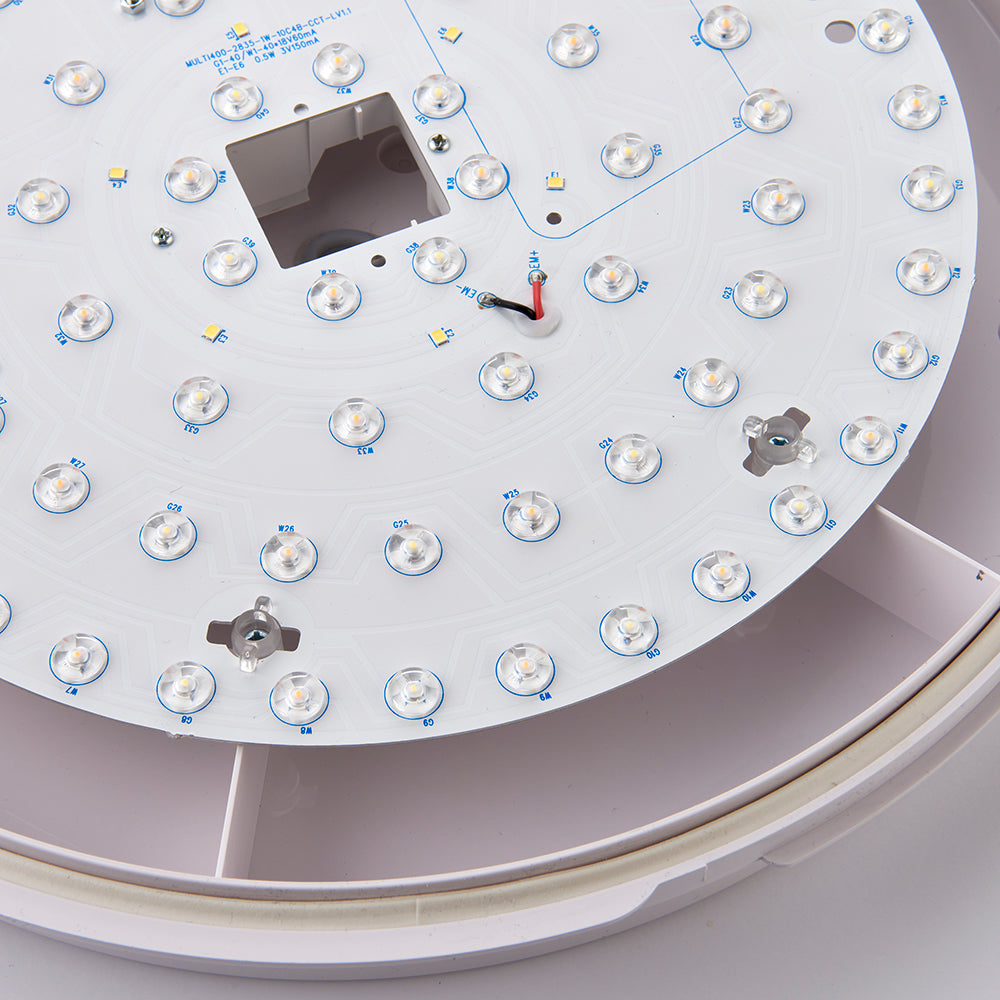

Light Technology LED SMD 2835
Light Bulb(s) Supplied Integrated LED
Luminous Flux 2000 lm - 2800 lm
Lumens per watt 100.00 lm/W
Manufacturer Guarantee 5 Years (Based on working temperature 0 - 45º)
Model Range ACTON XL CCT
Model No BHMW3X3XL-CT
Operating Temp (°C) -20 to 40 °C
Pack Size 1 Unit
Power Input Mains (Hardwired)
Power Factor Value 0.9
Product Diameter 400mm

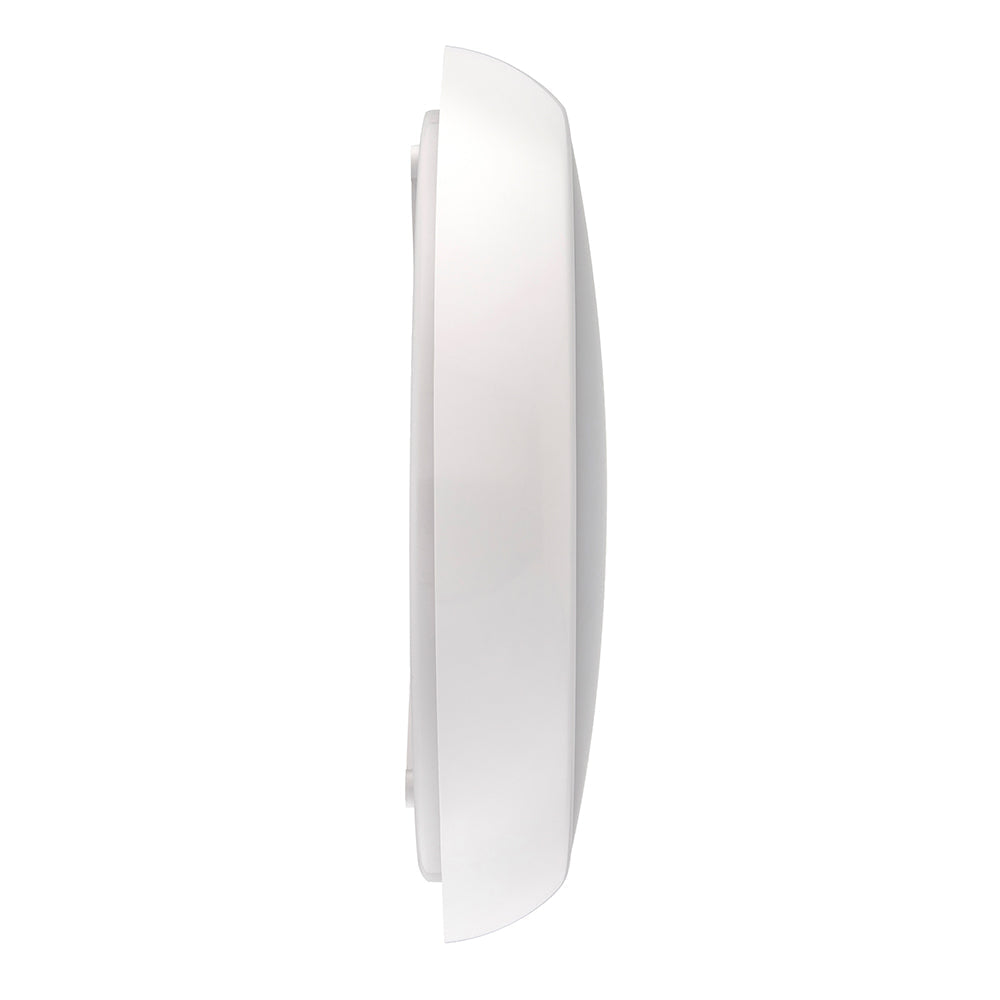

Product Dimenions (H x W x D) Depth: 85mm
Product Type LED Bulkhead
Product Weight 1.55 kg
Sensor Angle 360° Ceiling Installation | 150° Wall Installation
Sensor Delay (Time) 5s / 30s / 90s / 3min / 20min / 30min
Sensor Lux 2Lux / 10Lux / 25Lux / 50Lux / Disable
Sensor Rated Load 400W (Capacitive load) 800W (Resistive load)
Sensor Range Ceiling Height 3m: 3-6m (radius) Wall Height 1.5-2m: 12-15m
Sensor Type Microwave
Shape Round
Smart Compatibility No
Transformer Internal Driver
UKCA & CE Compliant Yes (Conformity Certificate Available)
Voltage 220-240V
Voltage Supply AC 50/60Hz
Wattage Switchable - 20.0W / 24.0W / 28.0W
