SPECIFICATION

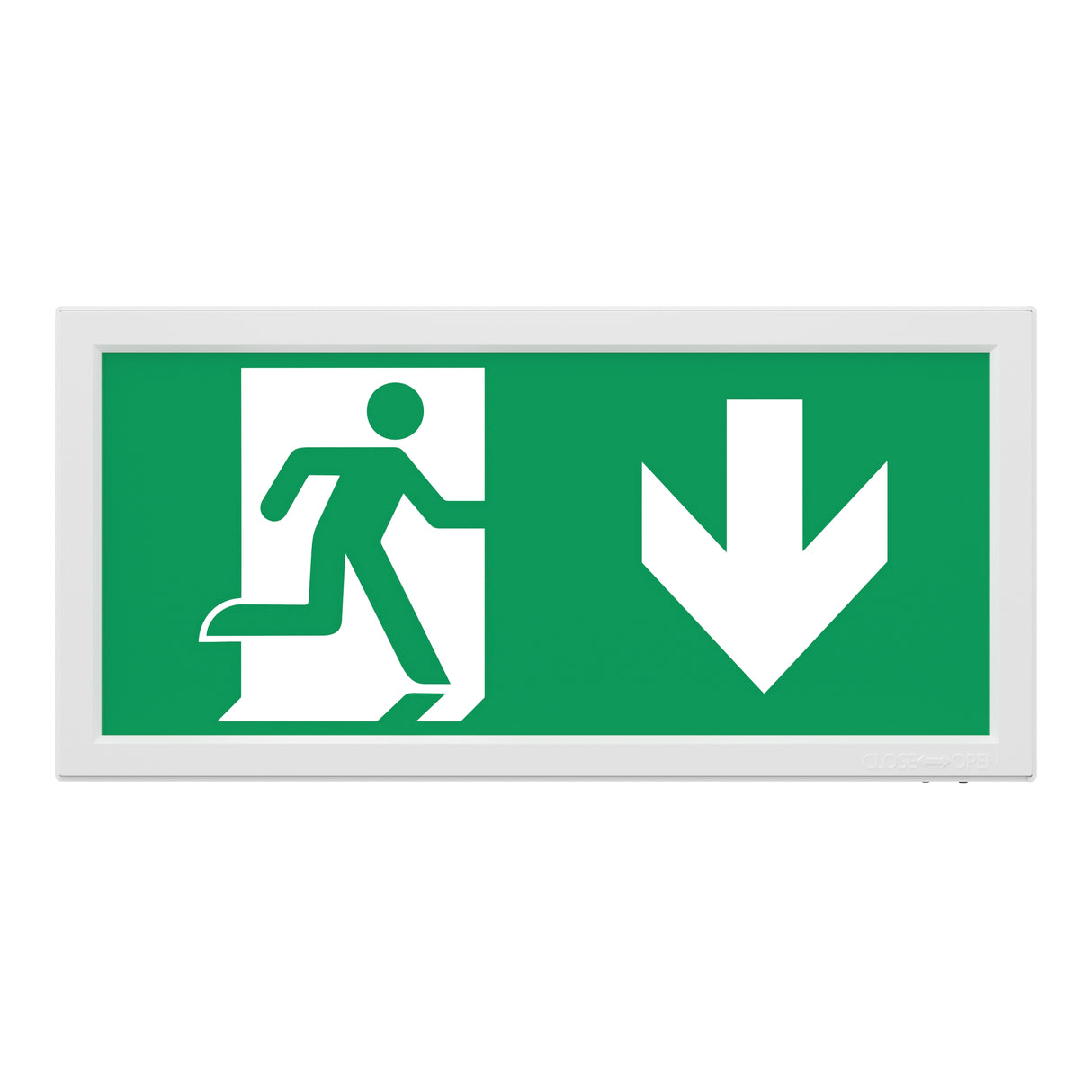

Assists in the compliance of regulations BS 5266, BS 5499-4:2013 and BS EN 1838:2013 for emergency lighting in commercial, public and accommodation premises. Modern and slim, this 380mm illuminated emergency exit box is an ideal, compact LED replacement for traditional T16-MF (T6) fluorescent tube alternatives. Up legend included.
| Average Life | 25,000 hrs |
| Body Colour | White |
| Body Material | Polycarbonate |
| Box Contents | Fitting, Fixings, Up Arrow Legend & Instructions |
| Cable Entry | 20mm Rear cable entry with side and top cable channelling |
| Cap Type | Integrated LED |
| Colour Rendering Index (CRI) | >=80 |
| Colour Temperature Description | Daylight White |
| Colour Temperature Value | 6500K |
| Dimmable | Non-Dimmable |
| Domestic/Commercial Use | Commercial |
| Earth Protection | Class II |
| Emergency (Yes/No) | Yes |
| Emergency Battery Life | >3 Hours |
| Emergency Battery Type | LiFePO4 (Replaceable) |
| Emergency Lighting Maintained | Maintained or Non-Maintained |
| Emergency Viewing Distance | 25 Metres |
| Emergency Voltage | 3.2V 1500mAh |
| Emergency Wattage | 3.0W |
| Fitting Installation | Wall |
| Fixings Supplied | Yes |
| Indoor/Outdoor Usage | Indoor |
| IP Rating | IP20 |
| kWh Per 1000hr Life | 3 |
| Diffuser Colour | Green |
| Diffuser Material | Polycarbonate |
| Light Technology | LED SMD 2835 |
| Luminous Flux | 90 lm |
| Luminous Flux (Emergency Mode) | 48 lm |
| Lumens per watt | 30 lm/w |
| Operating Temp (°C) | -5 to 40 °C |
| Pack Size | 1 Unit |
| Power Input | Mains (Hardwired) |
| Power Factor Value | 0.9 |
| Product Dimenions (H x W x D) | 195mm (h) x 392mm (w) x 30mm (d) |
| Product Type | Emergency Lighting |
| Shape | Rectangle |
| Smart Compatibility | No |
| Transformer | Internal Driver |
| UKCA & CE Compliant | Yes (Conformity Certificate Available) |
| UK & EU Regulations | BS EN 60598-2-22 |
| Voltage | 220-240 |
| Voltage Supply | AC 50/60Hz |
| Wattage | 3.0W |
