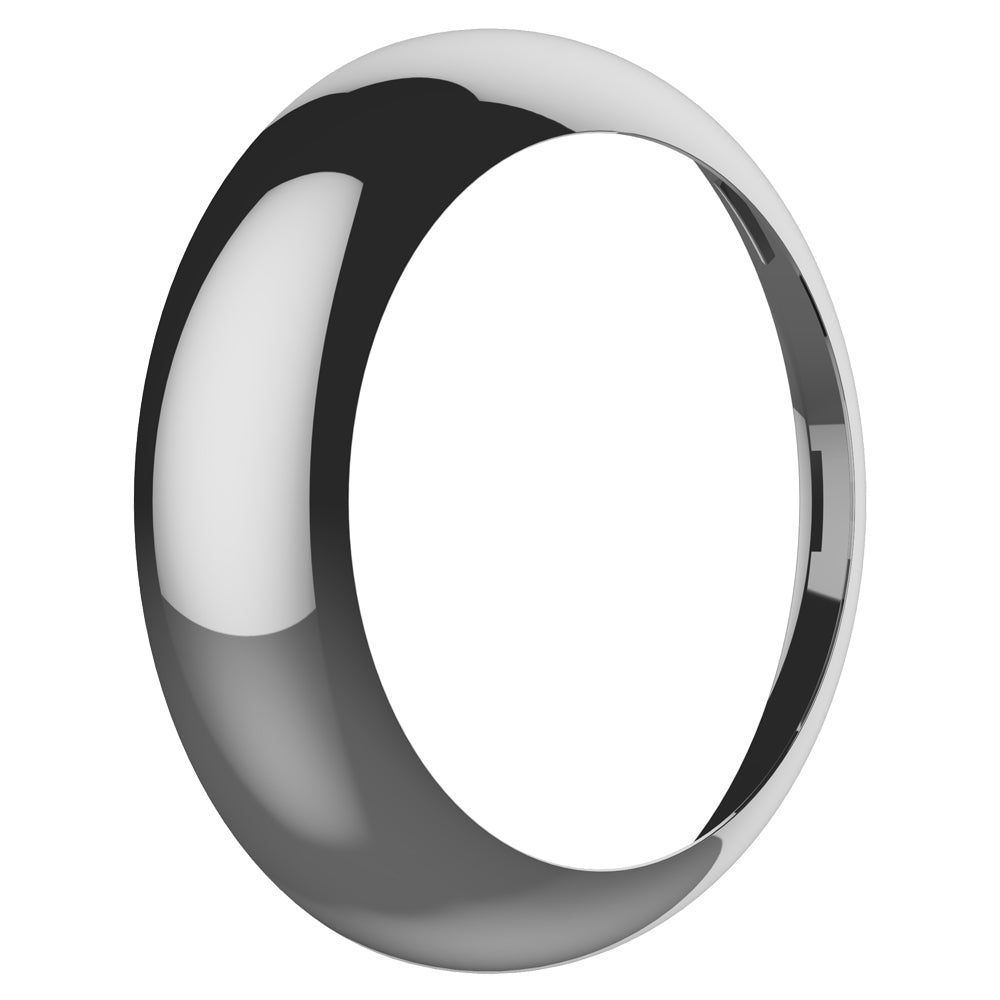

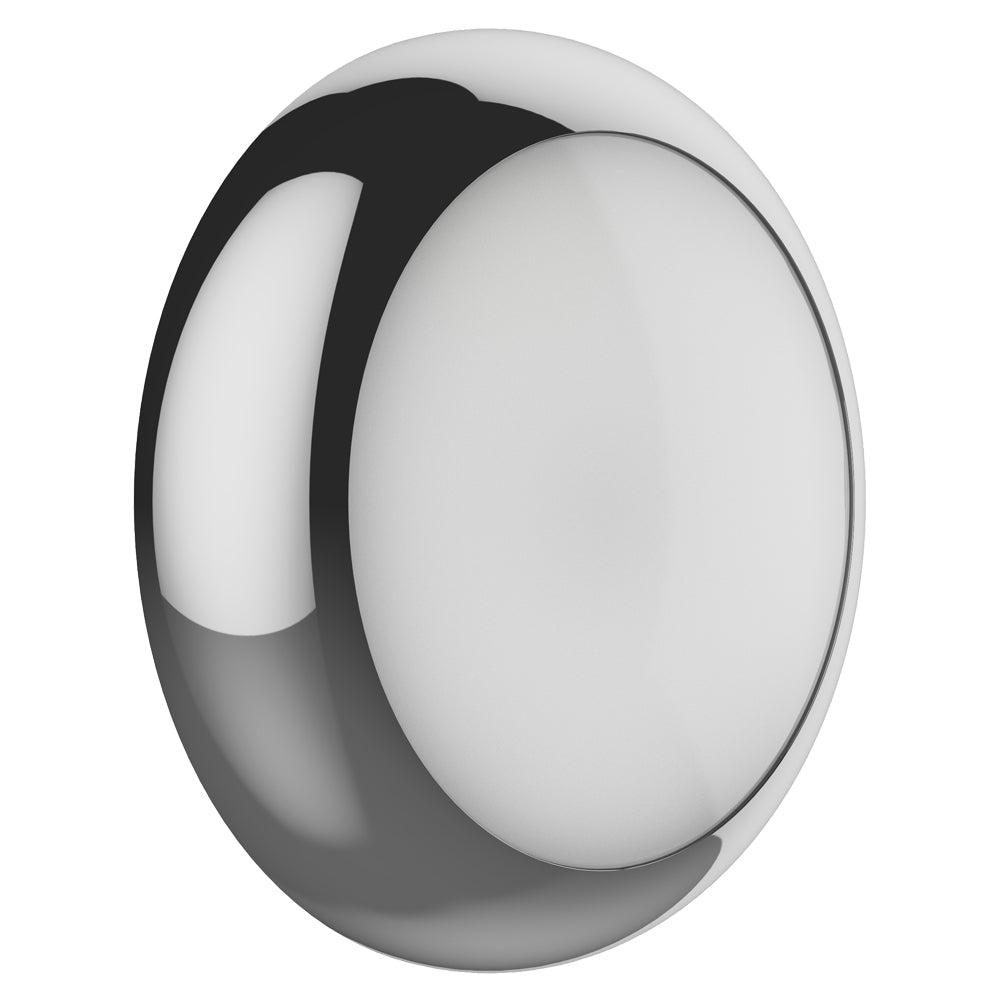

BUNDLE PRODUCT : BHMWEM18-CCT Bulkhead + Decorative Polished Chrome Trim

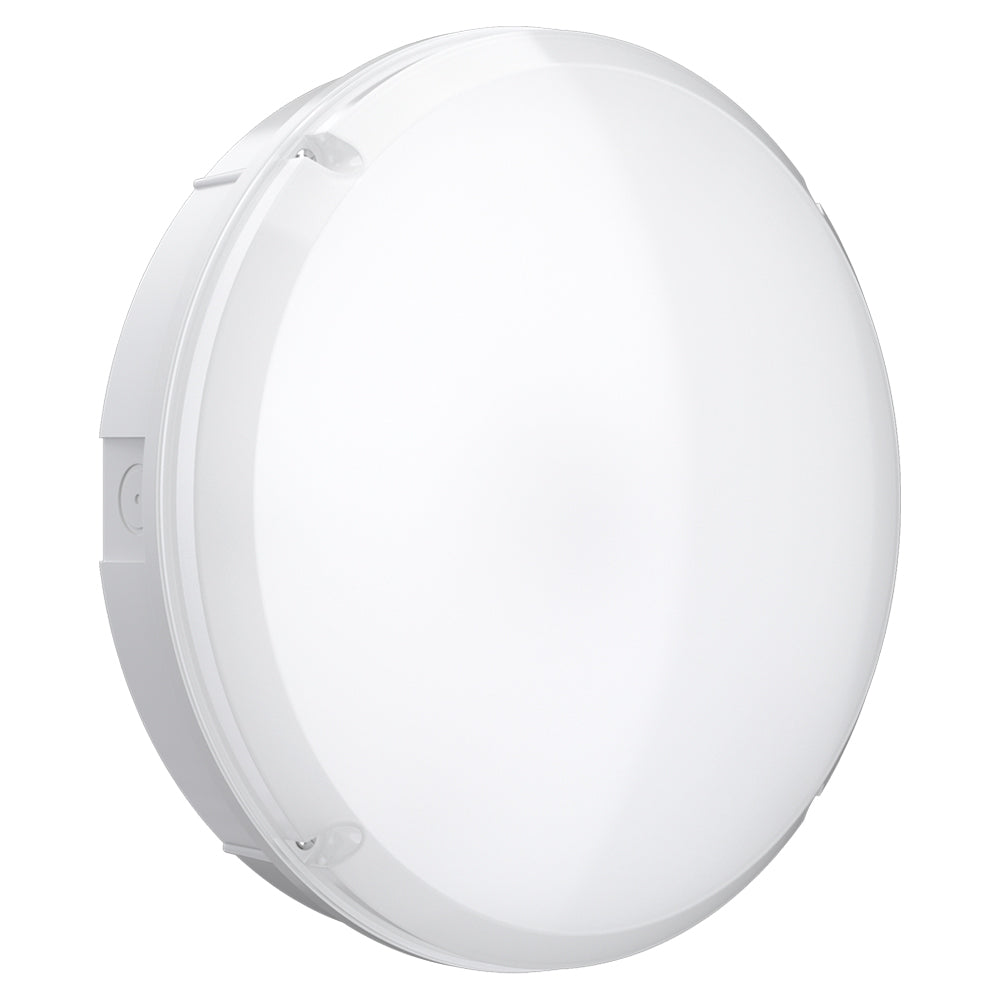

The BALHAM 18W LED drum style bulkhead with emergency function and microwave sensor complies with regulations BS 5266 and BS EN 1838:2013 for emergency lighting in commercial, public and accommodation premises.
Downloadable Product Files
Technical Specification
- Wattage: 18W
- Input: Mains Voltage, hardwired
- Complete with integrated LED driver
- Cable access entry at rear of fitting
- Built-in, non-replaceable LED chips
- LED Lifetime: 50,000hrs
- Lumen Output: 1600lm (300lm)
- LED Colour: Switchable 3000K, 4000K, 6000K
- CRI: 80
- Non-Dimmable
- Finish: Polished Chrome trim with frosted white diffuser
- IP Rating: IP65
- Diameter: 30cm
- Depth: 9.2cm
Emergency Features
- Dual Function - Can be wired in either maintained or non-maintained mode.
- Automatically switches the battery back up when mains power is lost.
- 3 hours running time on battery, allowing safe evacuation of a building.
- Ideal for achieving compliance with emergency lighting regulations.
Microwave Sensor
- On/Off switching function
- Adjustable detection sensitivity
- Adjustable on-time (5 secs, 90 secs, 5 mins, 15 mins)
- Adjustable LUX (required ambient light level)
| Cable Entry | Rear 20mm Cable Entry & 4 x 20mm Side Entry |
| Colour Temperature Value | 3000K, 4200K & 6500K |
| Conduit Knockouts | 4 x 20mm Side Conduit Knockouts |
| Emergency Battery Life | >3 Hours |
| Emergency Battery Type | LiFePO4 (Replaceable) |
| Emergency Lighting Maintained | Maintained / Non-Maintained |
| Emergency Voltage | 3.2V 1500mAh |
| Emergency Wattage | 2.0W |
| Luminous Flux (Emergency Mode) | 120 lm |
| Operating Temp (°C) | -20 to 45 °C |
| Product Diameter | 340mm |
| Product Dimenions (H x W x D) | Depth: 90mm |
| Sensor Angle | 360° Ceiling Installation | 120° Wall Installation |
| Sensor Delay (Time) | 5s / 30s / 90s / 3min / 20min / 30min |
| Sensor Lux | 2Lux / 10Lux / 25Lux / 50Lux / Disable |
| Sensor Rated Load | 400W (Capacitive load) 800W (Resistive load) |
| Sensor Range | Ceiling Height 3m: 3-6m (radius). Wall Height 1.5-2m: 12-15m |
| Sensor Type | Microwave |
