SPECIFICATION

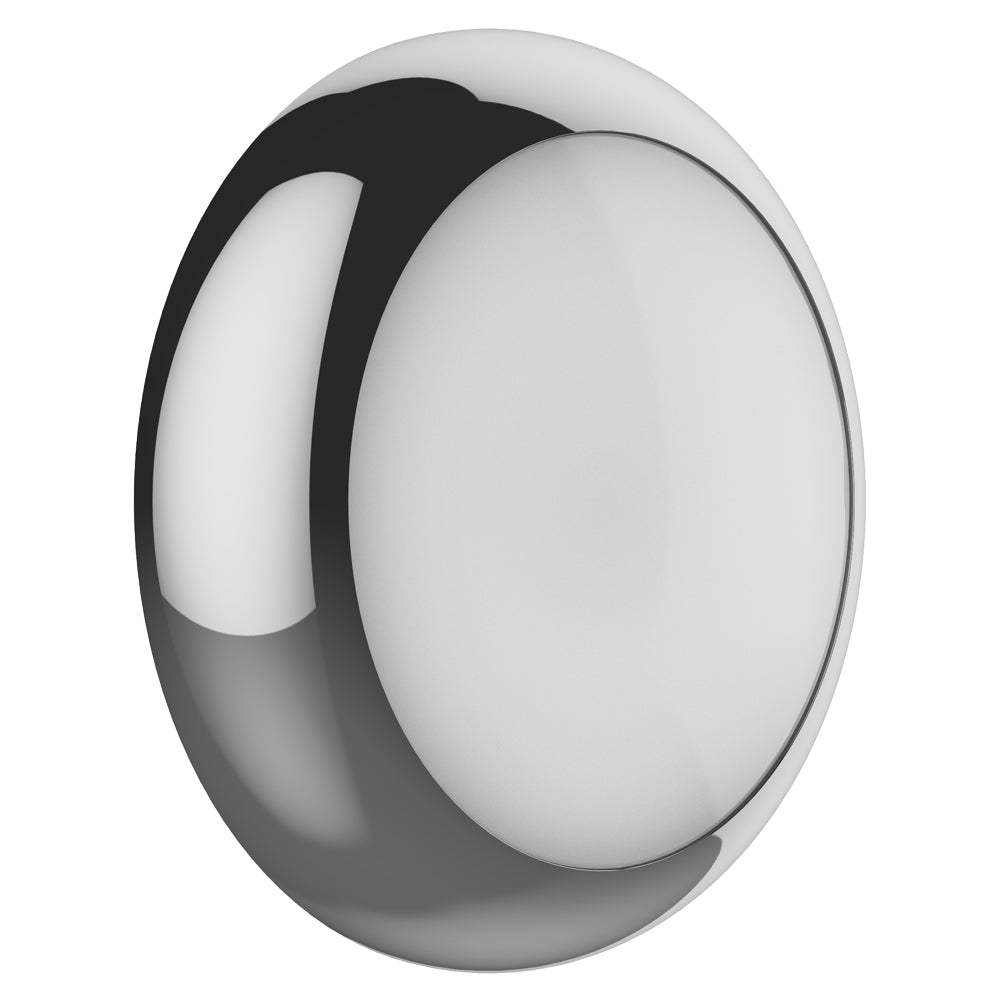

BUNDLE PRODUCT : BHMW18-CCT Bulkhead + Decorative Polished Chrome Trim

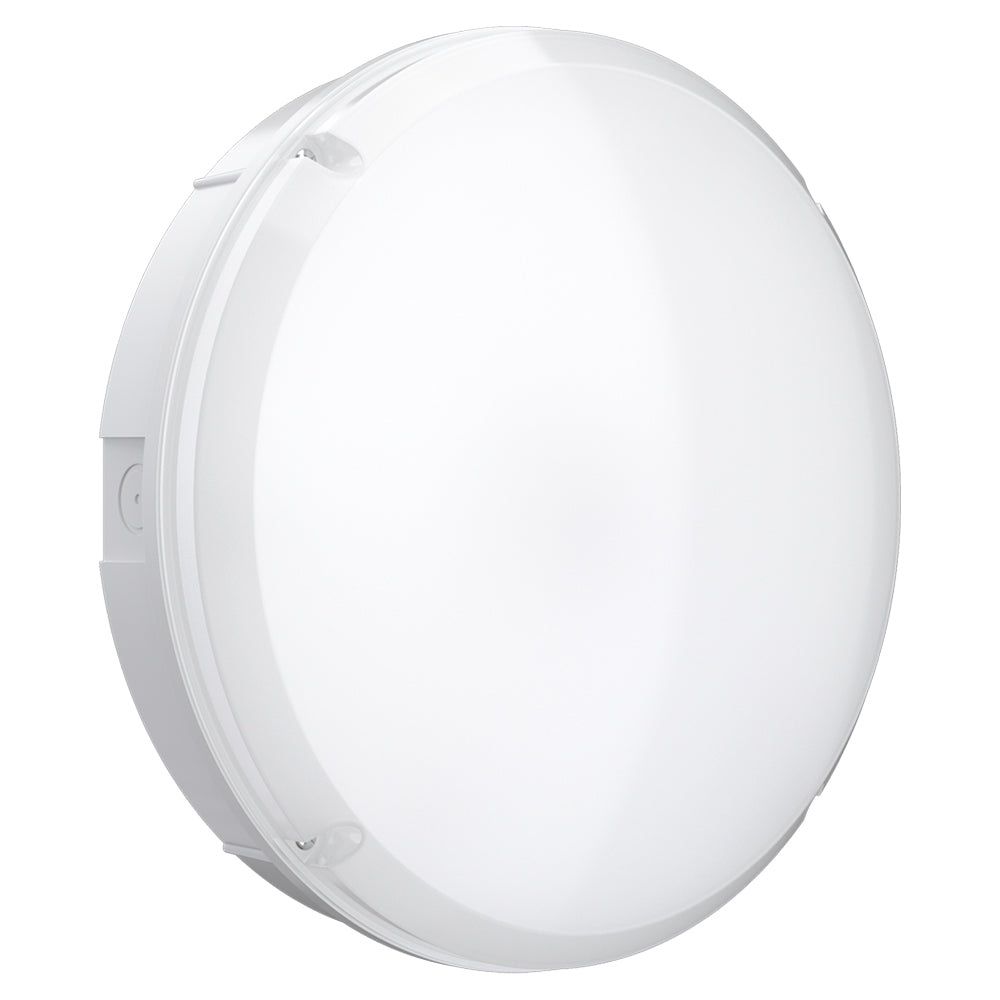

The BALHAM 18W LED drum style bulkhead with microwave motion sensor. The microwave motion sensor, also known as an occupancy switch, ensures that the light is only switched on when the area is in use.
Downloadable Product Files
| Average Life | 35,000 hrs |
| Bathroom Zones | Zones 1 & 2 |
| Beam Angle | 110º |

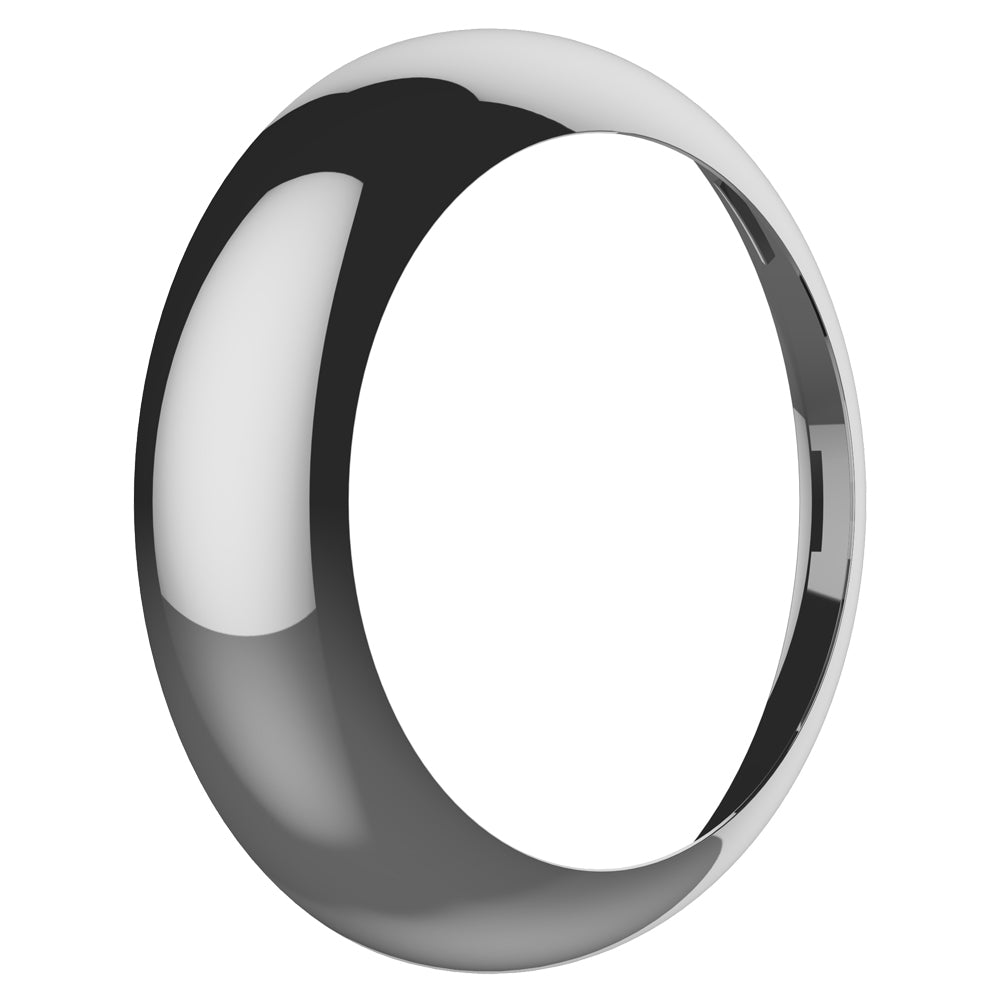

| Bezel Colour | Polished Chrome |
| Body Colour | White |
| Body Material | Polycarbonate |
| Box Contents | Fitting, Chrome Trim & Fixings |
| Brand | LightHub |
| Cable Entry | 4 x 20mm side conduit entry M20 knockouts or rear cable entry |
| Cap Type | Integrated LED |
| Colour Rendering Index (CRI) | >=80 |
| Colour Temperature Description | Warm White, Neutral White or Cool White |
| Colour Temperature Value | 3000K, 4200K or 6500K |
| Conduit Knockouts | 4 x 20mm side conduit knockouts |
| Dimmable | Non-Dimmable |
| Domestic/Commercial Use | Commercial, Semi-Commercial & Domestic |
| Earth Protection | Class II (No Earth) |
| Emergency (Yes/No) | No |
| Energy Rating | G |
| Fire Rated (Yes/No) | No |
| Fitting Installation | Ceiling / Wall |
| Fixings Supplied | Yes |
| IK Rating (Impact Protection) | IK08 |
| Indoor/Outdoor Usage | Indoor & Outdoor |
| Installation Options | Bathroom, Basement, Car Parks, Communal, Entrances, Toilets, Corridors, Pathways, Stairwells, Utility and Exterior Areas |
| IP Rating | IP65 |
| kWh Per 1000hr Life | 18 |
| Diffuser Colour | Opaque |
| Diffuser Material | Polycarbonate |
| Light Technology | LED SMD 2835 |
| Light Bulb(s) Supplied | Integrated LED |
| Luminous Flux | 1600 lm |
| Lumens per watt | 88.8 lm/W |
| Manufacturer Guarantee | 3 Years |
| Model Range | BALHAM |
| Model No | BHMW18-CCT-CHR |
| Operating Temp (°C) | -20 to 45 °C |
| Pack Size | 1 Unit |
| Power Input | Mains (Hardwired) |
| Power Factor Value | 0.9 |
| Product Diameter | 300mm |
| Product Dimenions (H x W x D) | 300mm (h) x 300mm (w) x 90mm (d) |
| Product Type | LED Sensor Bulkhead |
| Product Weight | 0.95 kg |
| Sensor Angle | 360° |
| Sensor Delay (Time) | 5secs-20mins |
| Sensor Lux | Daylight 2-50 lux |
| Sensor Rated Load | 400W (Capacitive load) 800W (Resistive load) |
| Sensor Range | Ceiling Height 3m: 3-6m (radius). Wall Height 1.5-2m: 12-15m |
| Sensor Type | Microwave |
| Shape | Round |
| Smart Compatibility | No |
| Transformer | Internal Driver |
| UKCA & CE Compliant | Yes (Conformity Certificate Available) |
| Voltage | 220-240 |
| Voltage Supply | AC 50/60Hz |
| Wattage | 18.0W |
