SPECIFICATION

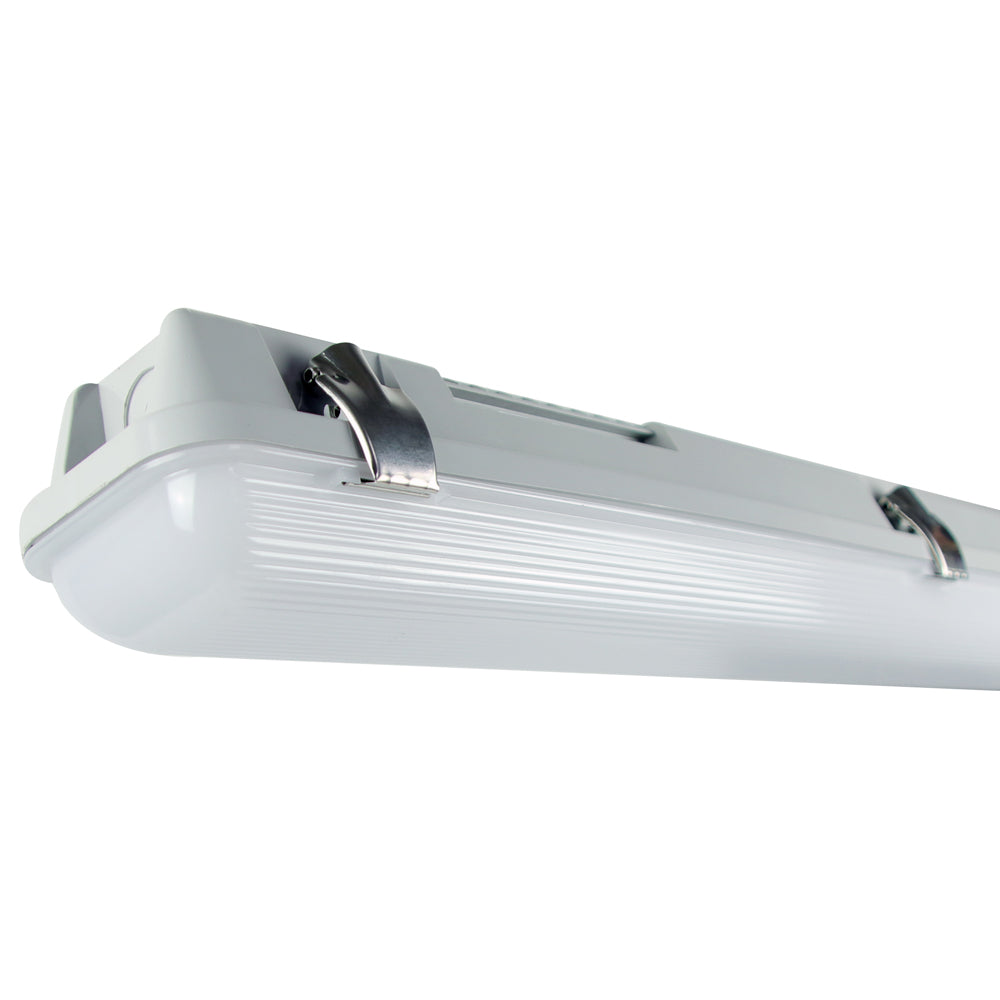

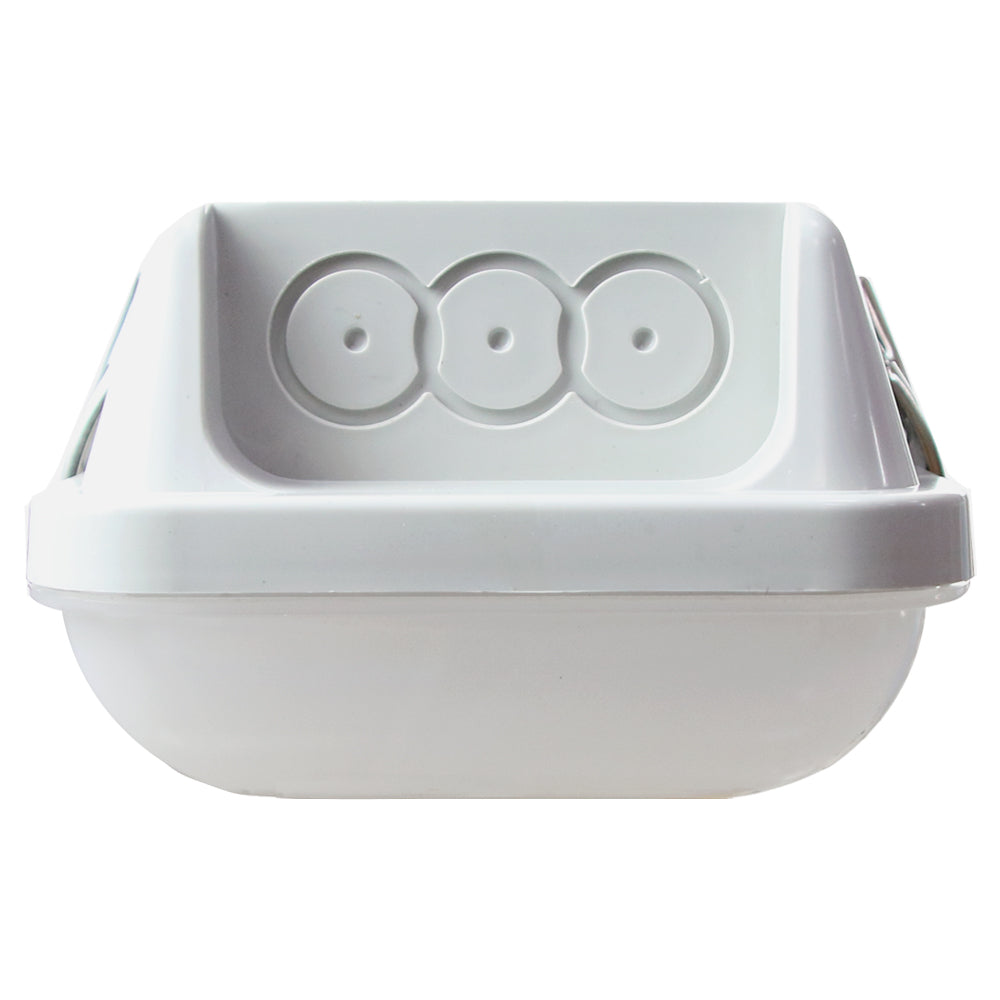

Highly efficient 115 lumens per watt light output via integrated LEDs. Heavy-duty stainless-steel clips to secure the diffuser in place and fix the light to the ceiling surface. Stainless steel will not rust or corrode. Features three gland knockouts at the end of the fitting.
Average Life | 50,000 hrs |
Bathroom Zones | Zones 1 & 2 |
Beam Angle | 120° |
Body Colour | Grey |
Body Material | Polycarbonate |
Box Contents | Fitting, Stainless Steel Clips, Glands & Fixings |
Cable Entry | 8 x 20mm Single gland knockouts |
Cap Type | Integrated LEDs |
Colour Rendering Index (CRI) | >=80 |
Colour Temperature Description | Neutral White |
Colour Temperature Value | 4000K |
Conduit Knockouts | 4 x 20mm End Knock-outs, 4 x 20mm Back Knockouts |
Dimmable | Non-Dimmable |
Domestic/Commercial Use | Commercial, Semi-Commerical & Domestic |
Earth Protection | Class I (Earth Required) |
Emergency (Yes/No) | Yes |
Emergency Battery Life | >3 Hours |
Emergency Battery Type | LiFePO4 (Replaceable) |
Emergency Lighting Maintained | Maintained or Non-Maintained |
Emergency Voltage | 6.4V |
Emergency Wattage | 3W |
Fire Rated (Yes/No) | No |
Fitting Installation | Ceiling or Wall |
Fixings Supplied | Yes |
IK Rating (Impact Protection) | IK08 |
Indoor/Outdoor Usage | Indoor or Outdoor |
Installation Options | Barns, Basements, Bathrooms, Car Parks, Corridors, Communal Areas, Garages, Kitchens, Offices, Sheltered Pathways, Shops, Stairwells, Store Rooms, Walkways, Warehouses and many other indoor & outdoor locations. |
IP Rating | IP65 |
kWh Per 1000hr Life | 60 |
Diffuser Colour | Frosted |
Diffuser Material | Polycarbonate |
Light Technology | LED SMD 2835 |
Light Bulb(s) Supplied | Integrated LEDs |
Luminous Flux | 6900 lm |
Luminous Flux (Emergency Mode) | 190 lm |
Lumens per watt | 115 lm/w |
Manufacturer Guarantee | 5 Years (Fitting), 2 Years (Battery) |
Model Range | BANKSIDE |
Model No | BTNC5T-MWEM |
Operating Temp (°C) | -20 to 50 °C |
Pack Size | 1 Unit |
Power Input | Mains (Hardwired) |
Product Dimenions (H x W x D) | 118mm (h) x 1524mm (w) x 73mm (d) |
Product Type | LED Batten |
Product Weight | 2.20 kg |
Sensor Angle | 150° (Wall Installation), 360° (Ceiling Installation) |
Sensor Delay (Time) | 5secs-30mins |
Sensor Lux | Daylight 2-50 lux |
Sensor Rated Load | 400W (Capacitive load) 800W (Resistive load) |
Sensor Range | Ceiling Height 3m: 3-6m (radius). Wall Height 1.5-2m: 12-15m |
Sensor Type | Microwave |
Shape | Rectangle |
Smart Compatibility | No |
Transformer | Internal Driver |
UKCA & CE Compliant | Yes (Conformity Certificate Available) |
Voltage | 220-240 |
Voltage Supply | AC 50/60Hz |
Wattage | 60.0W |
