SPECIFICATION

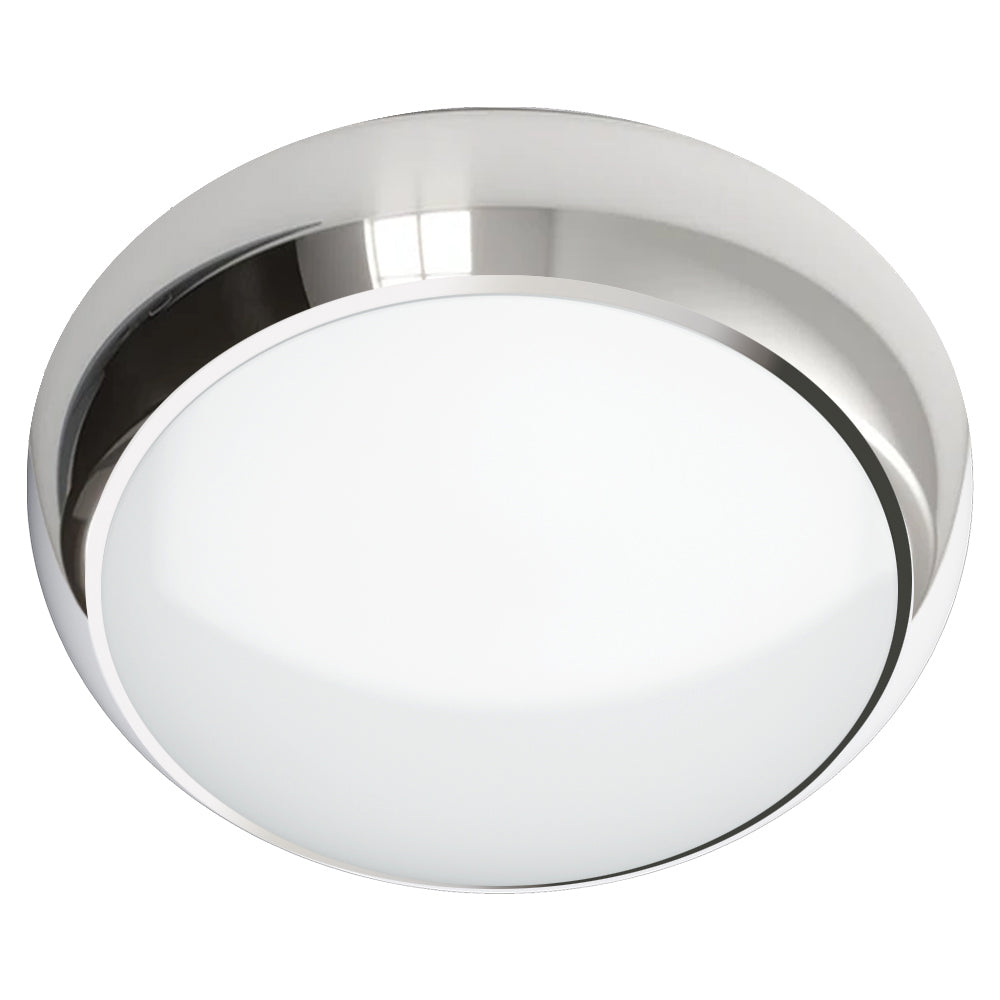

The DALSTON 325mmm x 111mm round LED bulkhead light is a direct replacement and energy efficient alternative to traditional fluorescent 2D style bulkheads. This round LED bulkhead can be wall mounted or ceiling mounted.
Downloadable Product Files
| Average Life | 40,000 hrs |
| Bezel Colour | Polished Chrome |
| Body Colour | White |
| Body Material | Polycarbonate |
| Brand | LightHub |
| Cable Entry | Rear 20mm Cable Entry |
| Cap Type | Integrated LED |
| Colour Temperature Value | 3000K, 4000K & 6500K |
| Conduit Knockouts | None |
| Dimmable | Non-Dimmable |
| Domestic/Commercial Use | Commercial, Semi-Commercial & Domestic |
| Earth Protection | Class II |
| Emergency (Yes/No) | No |
| Fitting Installation | Ceiling / Wall |
| Fixings Supplied | Yes |
| IK Rating (Impact Protection) | IK08 |
| Indoor/Outdoor Usage | Indoor / Outdoor |
| Installation Options | Bathrooms & Toilets / Basement / Corridors / Garages / Hotels & B&Bs / Offices / Outdoor Walls / Public Rooms / Receptions / Retail / Restaurants / Shops / Stairwells / Walkways |
| IP Rating | IP65 |
| kWh Per 1000hr Life | 17 |
| Diffuser Colour | Frosted |
| Diffuser Material | Polycarbonate |
| Light Technology | LED SMD 2835 |
| Light Bulb(s) Supplied | Integrated LED |
| Luminous Flux | 1500 lm |
| Luminous Flux (Emergency Mode) | 300 lm |
| Lumens per watt | 88.24 lm/w |
| Manufacturer Guarantee | 3 Years (Fitting), 2 Years (Battery) |
| Model Range | DALSTON |
| Model No | BHST17-CCT-CHR |
| Pack Size | 1 Unit |
| Power Input | Mains (Hardwired) |
| Power Factor Value | 0.9 |
| Product Dimenions (H x W x D) | 325mm (h) x 325mm (w) x 111mm (d) |
| Product Type | LED Bulkhead |
| Product Weight | 0.95 kg |
| Shape | Round |
| Smart Compatibility | No |
| Transformer | Internal Internal Driver |
| UKCA & CE Compliant | Yes (Conformity Certificate Available) |
| Voltage | 220-240 |
| Voltage Supply | AC 50/60Hz |
| Wattage | 17.0W |
REVIEWS
Customer Reviews
These light units are perfect. Currently replacing all wall & ceiling emergency lights in the stairwells of 3 private blocks of flats as and when the old ones give up. The original units had a 400mm footprint, running fluorescent tubes and they had 2 different types with various spare tubes making everything complicated especially with holding spares. These new ones are slightly smaller but give off a good light even in emergency mode. The building management company are impressed with these led alternatives. Installation was simple enough and the polycarbonate shell makes for easy drilling of holes for mounting. Delivery was fast and efficient for the 20 odd units ordered.
Really impressed with DALSTON 17W LED Emergency Microwave Motion Sensor lights. We have installed them in our Community Centre. The lux level adjustments mean that the one near our daylight window will only come on when our lux levels drop to a certain brightness. Recommended.
Really impressed with DALSTON 17W LED Emergency Microwave Motion Sensor lights. We have installed them in our Community Centre. The lux level adjustments mean that the one near our daylight window will only come on when our lux levels drop to a certain brightness. Recommended.
Really impressed with DALSTON 17W LED Emergency Microwave Motion Sensor lights. We have installed them in our Community Centre. The lux level adjustments mean that the one near our daylight window will only come on when our lux levels drop to a certain brightness. Recommended.
Really impressed with DALSTON 17W LED Emergency Microwave Motion Sensor lights. We have installed them in our Community Centre. The lux level adjustments mean that the one near our daylight window will only come on when our lux levels drop to a certain brightness. Recommended.
