SPECIFICATION

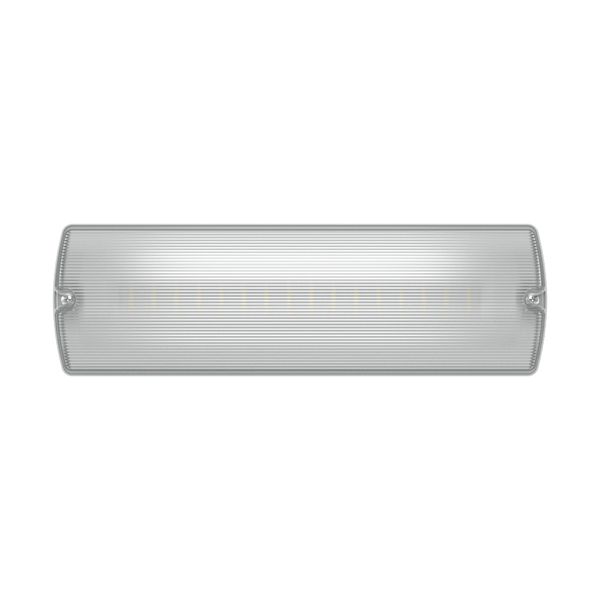

This self test function rectangle LED emergency bulkhead ceiling / wall light is a direct replacement and energy efficient alternative to traditional T5 style emergency bulkheads.
| Average Life | 50,000 hrs |
| Beam Angle | 120º |
| Body Colour | Grey |
| Body Material | Polycarbonate |
| Box Contents | Fitting, Fixing & Instructions |
| Cable Entry | 1 x Rear of bulkhead, 2 x Side of bulkhead. |
| Cap Type | Intergrated LED |
| Colour Rendering Index (CRI) | >=80 |
| Colour Temperature Description | Daylight White |
| Colour Temperature Value | 6500K |
| Conduit Knockouts | 2 x 20mm Conduit Knockout at side of fitting. |
| Dimmable | Non-Dimmable |
| Domestic/Commercial Use | Commercial |
| Earth Protection | Class II |
| Emergency (Yes/No) | Yes. Self Test Funtction |
| Emergency Battery Life | >3 Hours |
| Emergency Battery Type | LiFePO4 (Replaceable) |
| Emergency Lighting Maintained | Maintained or Non-Maintained |
| Emergency Viewing Distance | 24M |
| Emergency Voltage | 3.2V 1500mAh |
| Emergency Wattage | 2.0W |
| Fire Rated (Yes/No) | No |
| Fitting Installation | Ceiling / Wall |
| Fixings Supplied | Yes |
| IK Rating (Impact Protection) | IK08 |
| Indoor/Outdoor Usage | Indoor & Outdoor |
| IP Rating | IP65 |
| kWh Per 1000hr Life | 4.5 |
| Diffuser Colour | Transparent |
| Diffuser Material | Polycarbonate |
| Light Technology | LED SMD 2835 |
| Luminous Flux | 220 lm |
| Luminous Flux (Emergency Mode) | 130 lm |
| Lumens per watt | 73 lm/w |
| Manufacturer Guarantee | 3 Years |
| Operating Temp (°C) | -20 to 45 °C |
| Pack Size | 1 Unit |
| Power Input | Mains (Hardwired) |
| Product Dimenions (H x W x D) | 110mm (h) x 355mm (w) x 70mm (d) |
| Product Type | Emergency Bulkhead |
| Product Weight | 0.5 kg |
| Shape | Rectangle |
| Smart Compatibility | No |
| Transformer | Internal Driver |
| UKCA & CE Compliant | Yes (Conformity Certificate Available) |
| Voltage | 220-240 |
| Voltage Supply | AC 50/60Hz |
| Wattage | 4.50W |
